BRTNG09WSS3P/F
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 160T-380T Injection Molding Machines | BRTNG Series Three-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
2kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
160T-380T
Power Supply
220V
Arm Length
V:950mm

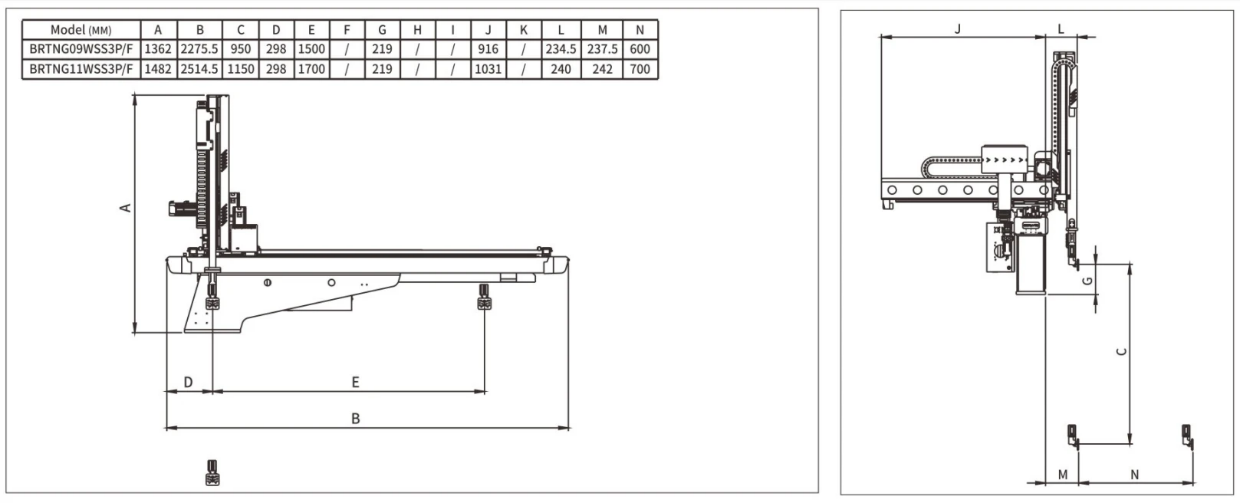

I.M.M. Robot Product Parameters
ModelBRTNG09WSS3P/F
Recommended I.M.M160T-380T
Traverser DrivenAC Servo motor
Model of EOATTwo suctions
Two fixtures
Traverse Stroke1500mm
Crosswise Stroke600mm
Vertical Stroke950mm
Max.loading2kg
Dry Take Out Time0.68s
Dry Cycle Time4.07s
Air Consumption(NL/cycle)3.2
Repeatability±0.05mm
Power source3.23kVA
Weight300kg
Application scenariosInjection molding industry
