BRTP06ISSOPC

Precision Engineered Robotic Systems
Payload Capacity
2kg
Working Reach
V:650mm
Repeated Accuracy
±0.05mm

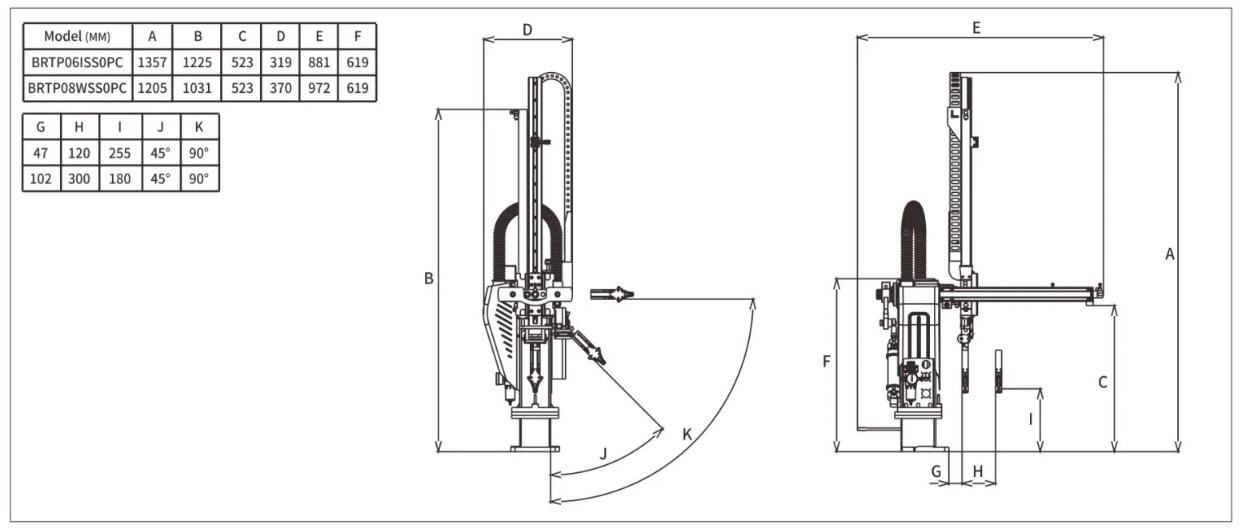

BRTP06ISSOPC Front View
BRTP06ISSOPC Side View
I.M.M. ROBOT SYSTEM DESIGN

“I.M.M Robot for 30T-150T Injection Molding Machines | BRTP Series Swing-Arm Servo Manipulator”

System Specifications

Control System
HC Control System
Color(General)
white
Loading Ability
2kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
30T-150T
Power Supply
220V
Arm Length
V:650mm

I.M.M. Robot Product Parameters

ModelBRTP06ISSOPC
Recommended I.M.M30T-150T
Traverser DrivenDriven by cylinder
Model of EOATZero suctions Zero fixtures
Traverse Stroke/
Crosswise Stroke120mm
Vertical Stroke650mm
Max.loading2kg
Dry Take Out Time1.6s
Dry Cycle Time5.5s
Swing Angle：30-90°
Air Consumption（NL/cycle）3
Repeatability±0.05mm
Power source0.5kVA
Weight36kg
Application scenarios：Injection molding industry
