BRTP08WSS0PC

Precision Engineered Robotic Systems
Payload Capacity
2kg
Working Reach
V:850mm
Repeated Accuracy
±0.05mm

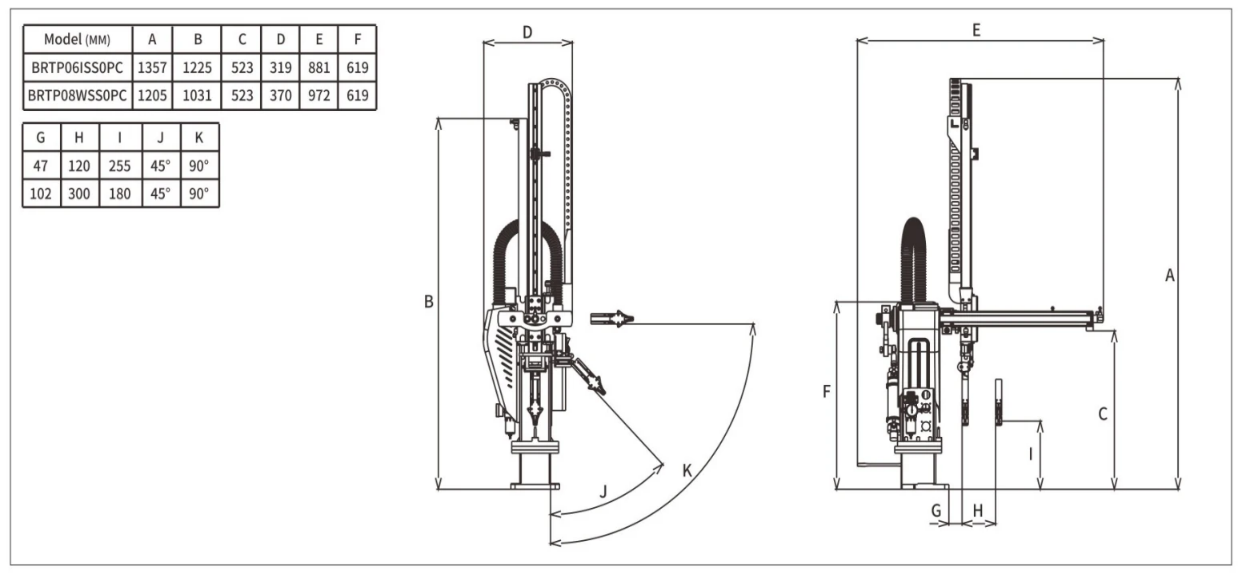

BRTP08WSS0PC Front View
BRTP08WSS0PC Side View
I.M.M. ROBOT SYSTEM DESIGN

“I.M.M Robot for 150T-250T Injection Molding Machines | BRTP Series Swing-Arm Servo Manipulator”

System Specifications

Control System
HC Control System
Color(General)
white
Loading Ability
2kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
150T-250T
Power Supply
220V
Arm Length
V:850mm

I.M.M. Robot Product Parameters

ModelBRTP08WSS0PC
Recommended I.M.M150T-250T
Traverser DrivenDriven by cylinder
Model of EOATZero suctions Zero fixtures
Traverse Stroke/
Crosswise Stroke300mm
Vertical Stroke850mm
Max.loading2kg
Dry Take Out Time2s
Dry Cycle Time6s
Swing Angle：30-90°
Air Consumption（NL/cycle）3
Repeatability±0.05mm
Power source1.27kVA
Weight60kg
Application scenarios：Injection molding industry
