WEC-E12M
Precision Engineered Robotic Systems
COBOT SYSTEM DESIGN
“High-Precision Cobot for Flexible Production | 12kg Load, 1200mm Arm Length | Featuring simple design & Easy wiring & Flexible deployment”
System Specifications
Color(General)
blue
Loading Ability
12kg

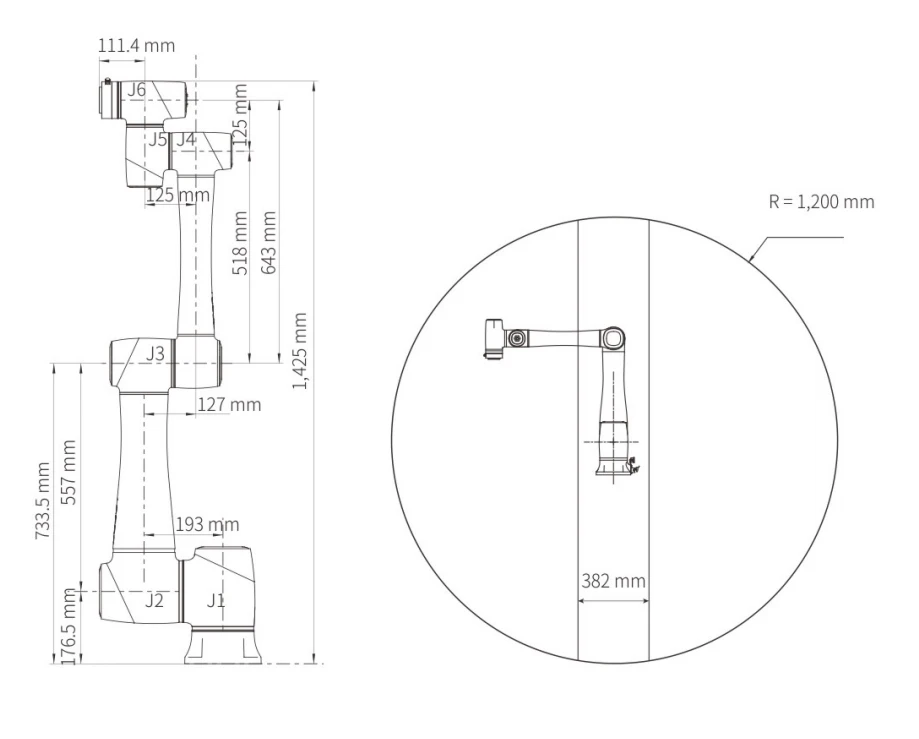

Arm Length
1200mm
Repeated Positioning accuracy
±0.03mm
Weight
39.5kg
Protection grade
Ip54
Power Supply
220V
Material
Aluminum alloy,ABS plastic
Cobot Product Parameters
ModelWEC-E12M
Weight39.5kg
Maximun load12kg
Working radius1200mm
Maximum linear speed2m/s
Joint range of motionJ3：±160° (other joints ±360°)
Maximum joint speedJ1/J2:(180°/s) J3:(223°/s) J4/J5:(223°/s)
Terminal IODI(2 channels)/DO(2 channels)/AI(2 channels multiplexed with RS485)
Repeated positioning accuracy±0.03mm
IP level±Ip54
Temperature range0~50°C
Typical power consumption350W
Installation methodany Angle
The length of the cable from the main body to the electrical cabinet5m
MaterialAluminum alloy,ABS plastic
