Payload Capacity

3kg

Working Reach

620mm

Repeated Accuracy

±0.02mm

COBOT SYSTEM DESIGN

“High-Precision Cobot for Flexible Production | 3kg Load, 620mm Arm Length | Featuring simple design & Easy wiring & Flexible deployment”

Color(General)

blue

Loading Ability

3kg

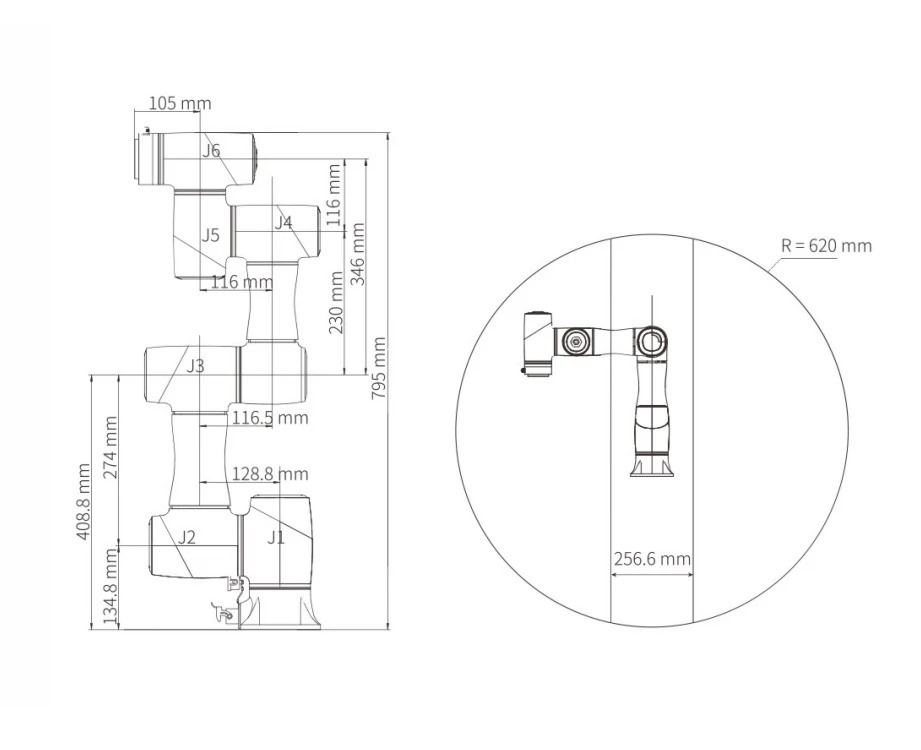

Arm Length

620mm

Repeated Positioning accuracy

±0.02mm

Weight

16.5kg

Protection grade

Ip54

Power Supply

220V

Material

Aluminum alloy,ABS plastic

ModelWEC-E3M

Weight16.5kg

Maximun load3kg

Working radius620mm

Maximum linear speed2m/s

Joint range of motionJ3：±155° (other joints ±360°)

Maximum joint speedJ1/J2:(180°/s) J3:(180°/s) J4/J5:(223°/s)

Terminal IODI(2 channels)/DO(2 channels)/AI(2 channels multiplexed with RS485)

Repeated positioning accuracy±0.02mm

IP level±Ip54

Temperature range0~50°C

Typical power consumption120W

Installation methodany Angle

The length of the cable from the main body to the electrical cabinet5m

MaterialAluminum alloy,ABS plastic
