Payload Capacity

20kg

Working Reach

1700mm

Repeated Accuracy

±0.01mm

COBOT SYSTEM DESIGN

“High-Precision Cobot for Flexible Production | 20kg Load, 1700mm Arm Length | Featuring simple design & Easy wiring & Flexible deployment”

Color(General)

blue

Loading Ability

20kg

Arm Length

1700mm

Repeated Positioning accuracy

±0.01mm

Weight

70kg

Protection grade

Ip54

Power Supply

220V

Material

Aluminum alloy,ABS plastic

ModelWEC-E20M

Weight70kg

Maximun load20kg

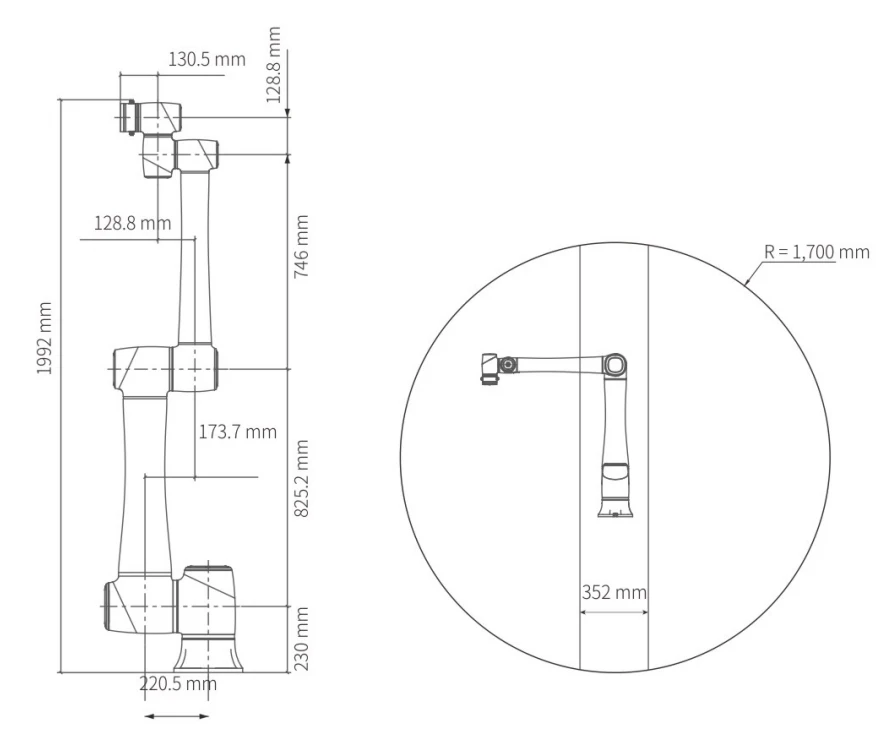

Working radius1700mm

Maximum linear speed2m/s

Joint range of motionJ3：±165° (other joints ±360°)

Maximum joint speedJ1/J2:(120°/s) J3:(150°/s) J4/J5:(180°/s)

Terminal IODI(2 channels)/DO(2 channels)/AI(2 channels multiplexed with RS485)

Repeated positioning accuracy±0.01mm

IP level±Ip54

Temperature range0~50°C

Typical power consumption500W

Installation methodany Angle

The length of the cable from the main body to the electrical cabinet5m

MaterialAluminum alloy,ABS plastic
