BRTIRPL1003A

Precision Engineered Robotic Systems
Payload Capacity
3kg
Working Reach
1000mm
Repeated Accuracy
±0.01mm

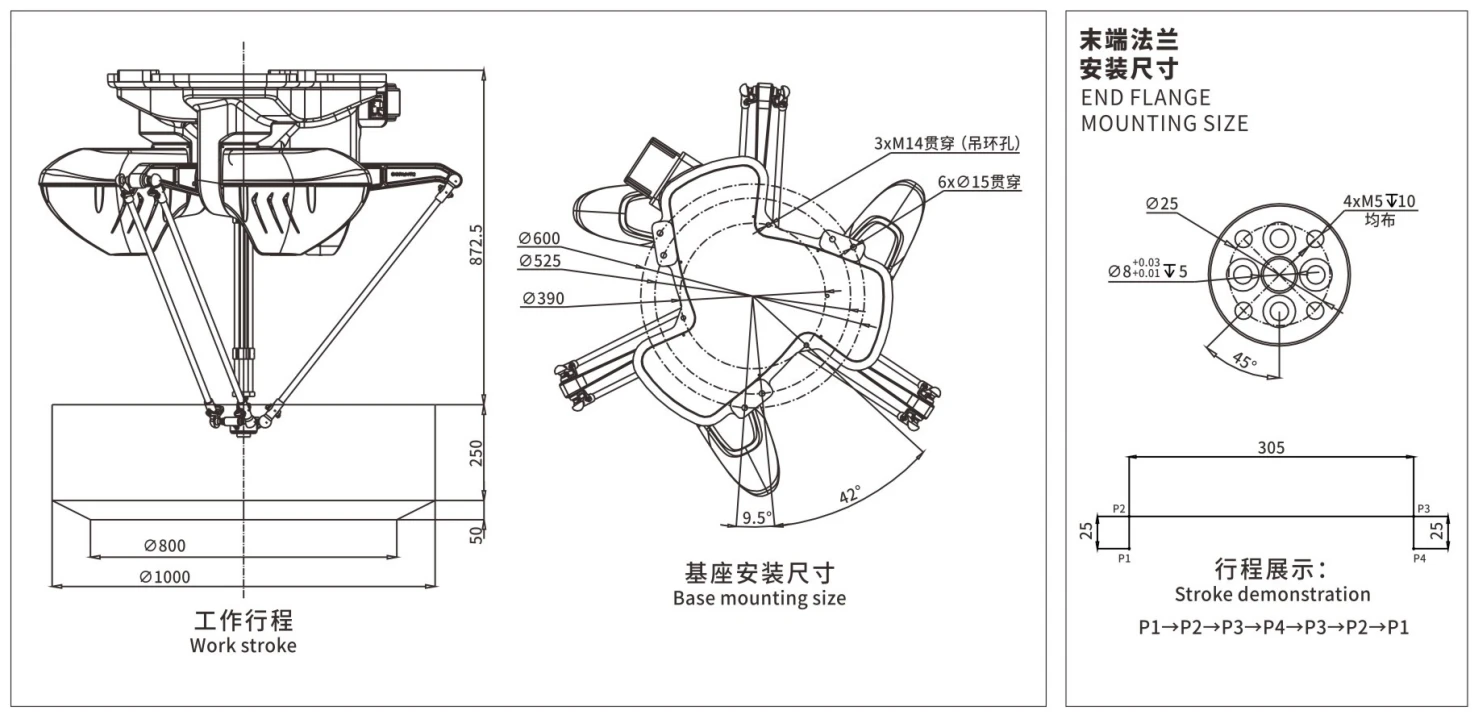

BRTIRPL1003A Front View
BRTIRPL1003A Side View
FOUR AXIS SYSTEM DESIGN

“Four-axis Industrial Robot for Loading and Unloading | 3kg Load, 1000mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
3kg
Arm Length
1000mm
Repeated Positioning accuracy
±0.01mm
Weight
about 104kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Four-Axis Product Parameters

ModelBRTIRPL1003A
Range(Master Arm)Upper:46.7°  Hem:86.6°
Range(End)J4:±360°
Rhythm(stroke25/305/20mm)150time/min
Arm Length1000mm
Loading ability3kg
Repeated positioning accuracy±0.1mm
Angle repeated positioning accuracy±0.5°
MAX allowable moment of inertia of load0.01kg.m²
Power source3.18kVA
WeightAbout 104kg
Application scenariosHandling，Stacking，Stamping，Injection molding，Assembling, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
