BRTIRPZ1508A

Precision Engineered Robotic Systems
Payload Capacity
8kg
Working Reach
1500mm
Repeated Accuracy
±0.05mm
BRTIRPZ1508A Front View
BRTIRPZ1508A Side View

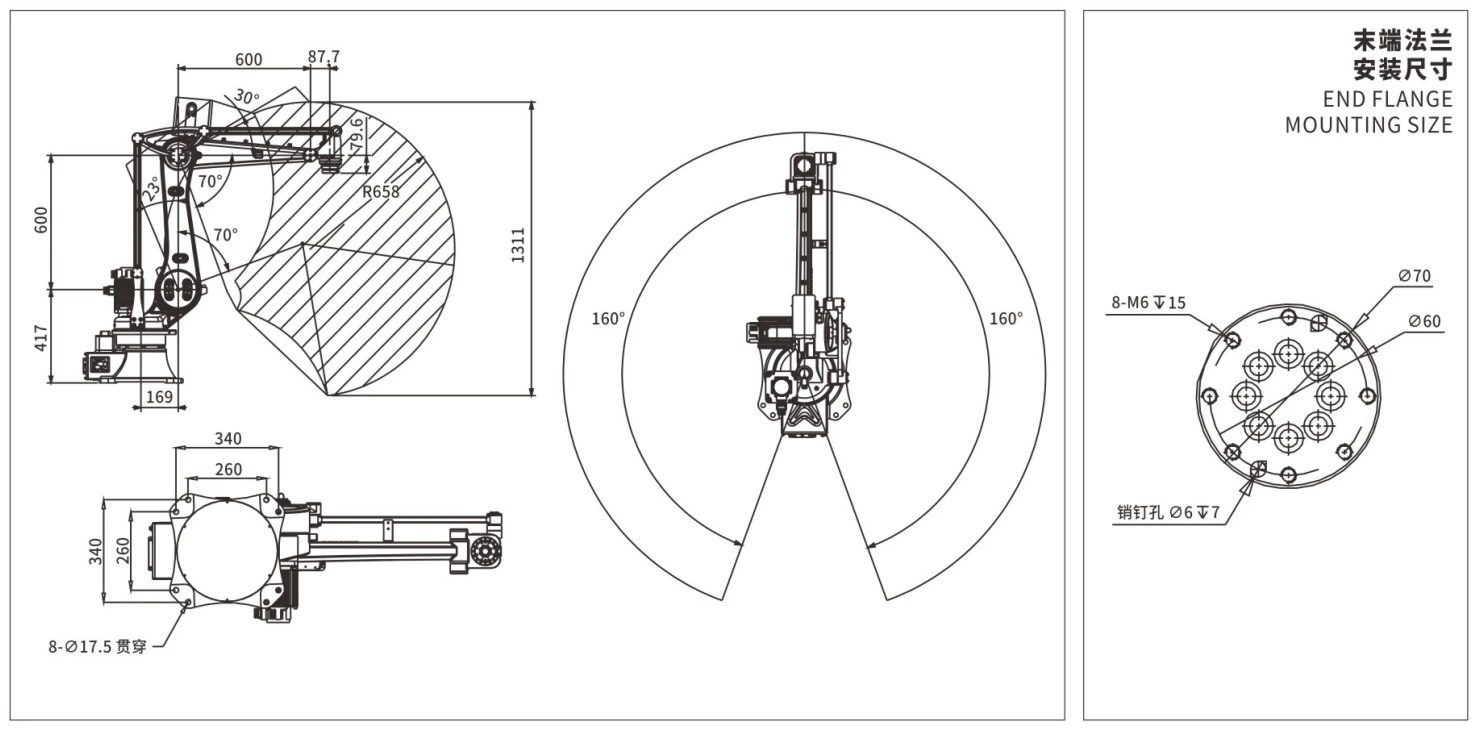

FOUR AXIS SYSTEM DESIGN

“Four axis Industrial Robot for Stamping and Palletizing | 8kg Load 1500mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
8kg
Arm Length
1500mm
Repeated Positioning accuracy
±0.05mm
Weight
about 150kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Four-Axis Product Parameters

ModelBRTIRPZ1508A
Range(Arm)J1:±160° J2:-70°/+23° J3:-70°/+30°
Range(Wrist)J4:±180° R34:60°-165°
Max.speed(Arm)J1:219.8°/s J2:222.2°/s J3:272.7°/s
Max.speed(Wrist)J4:412.5°/s
Arm Length1500mm
Loading ability8kg
Repeated positioning accuracy±0.05mm
Power source3.18kVA
WeightAbout 150kg
Application scenariosHandling ，Stacking ，Stamping ，Injection molding ， Assembling，etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
