Products / Four Axis Series / BRTIRPL1608A

BRTIRPL1608A

Precision Engineered Robotic Systems
Payload Capacity
8kg
Working Reach
1600mm
Repeated Accuracy
±0.01mm
BRTIRPL1608A Front View
BRTIRPL1608A Side View
FOUR AXIS SYSTEM DESIGN

“Four axis Industrial Robot for Palletizing Loading and Unloading | 8kg Load 1600mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
8kg
Arm Length
1600mm
Repeated Positioning accuracy
±0.01mm
Weight
about 95kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

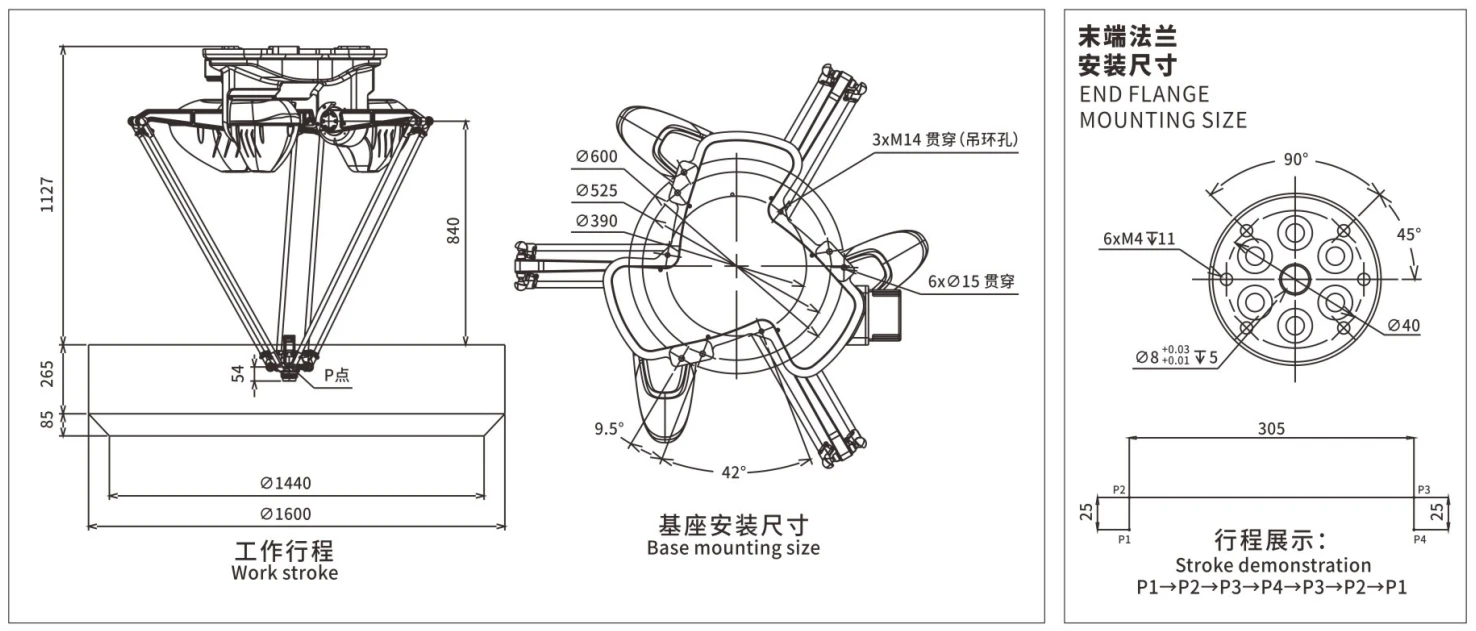

Four-Axis Product Parameters

ModelBRTIRPL1608A
Range(Master Arm)Upper:38° Hem:98°
Range(End)J4:±360°
Rhythm(stroke25/305/20mm)0kg:150time/min 3kg:150time/min 5kg:130time/min 8kg:115time/min
Arm Length1600mm
Loading ability8kg
Repeated positioning accuracy±0.01mm
MAX allowable moment of inertia of load0.01kg.m²
Power source6.36kVA
WeightAbout 95kg
Application scenariosHandling，Visual，Inspection，Sorting，Assembling，Stacking, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
