BRTIRSC0603A

Precision Engineered Robotic Systems
Payload Capacity
3kg
Working Reach
600mm
Repeated Accuracy
±0.02mm
BRTIRSC0603A Front View
BRTIRSC0603A Side View

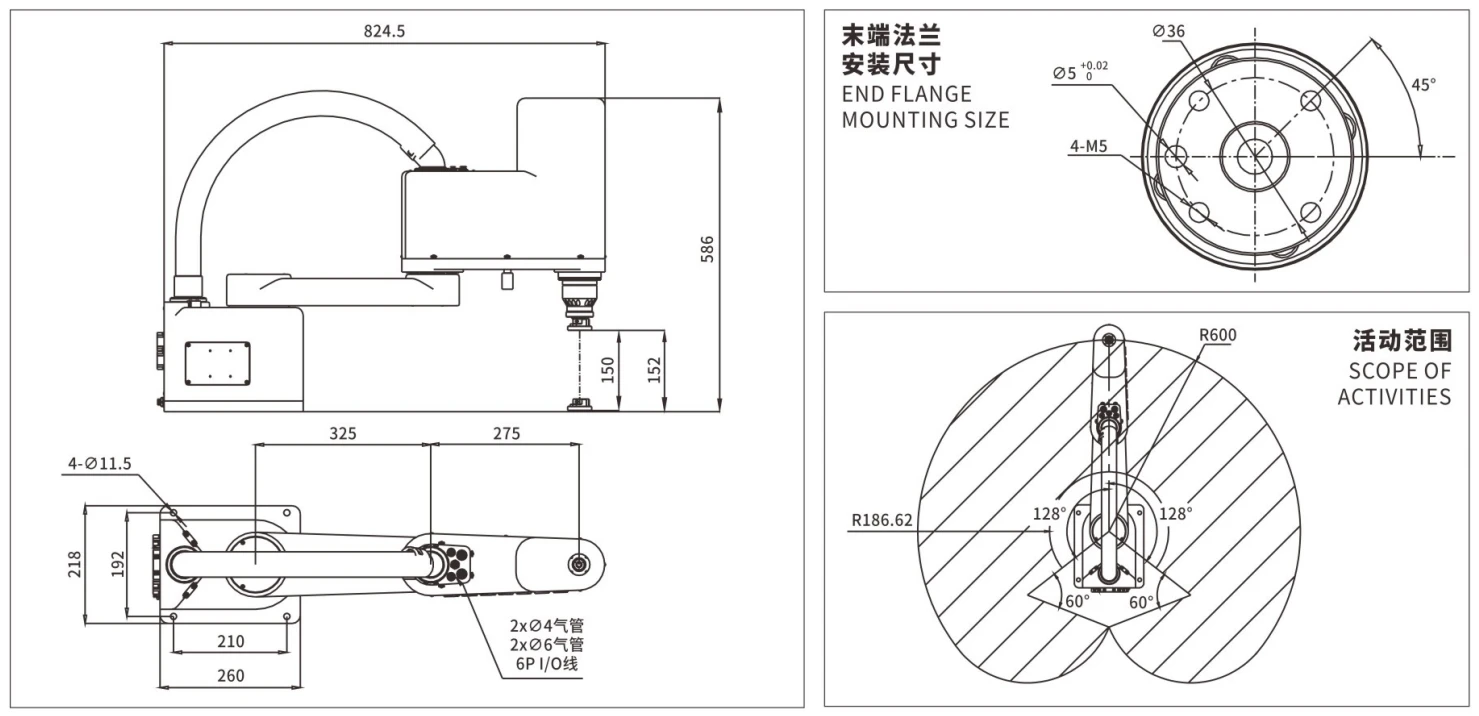

FOUR AXIS SYSTEM DESIGN

“Four-axis Industrial Robot for Loading and Unloading | 3kg Load, 600mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
3kg
Arm Length
600mm
Repeated Positioning accuracy
±0.02mm
Weight
about 28kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Four-Axis Product Parameters

ModelBRTIRSC0603A
Range(Arm)J1:±128°  J2:±145°  J3:150mm
Range(Wrist)J4:±360°
Max.speed(Arm)J1:480°/s  J2:576°/s  J3:900mm/s
Max.speed(Wrist)J4:696°/s
Arm Length600mm
Loading ability3kg
Repeated positioning accuracy±0.02mm
Power source5.62kVA
WeightAbout 28kg
Application scenariosHandling，Visual，Inspection，Sorting，Gluing，Assembling，Stacking, etc.
Operating temperature0℃~40℃
Best temperature25℃~40℃
Relative humidity20~80% RH（No condensation）
