Products / Four Axis Series / BRTIRPZ2480A

BRTIRPZ2480A

Precision Engineered Robotic Systems
Payload Capacity
80kg
Working Reach
2400mm
Repeated Accuracy
±0.2mm

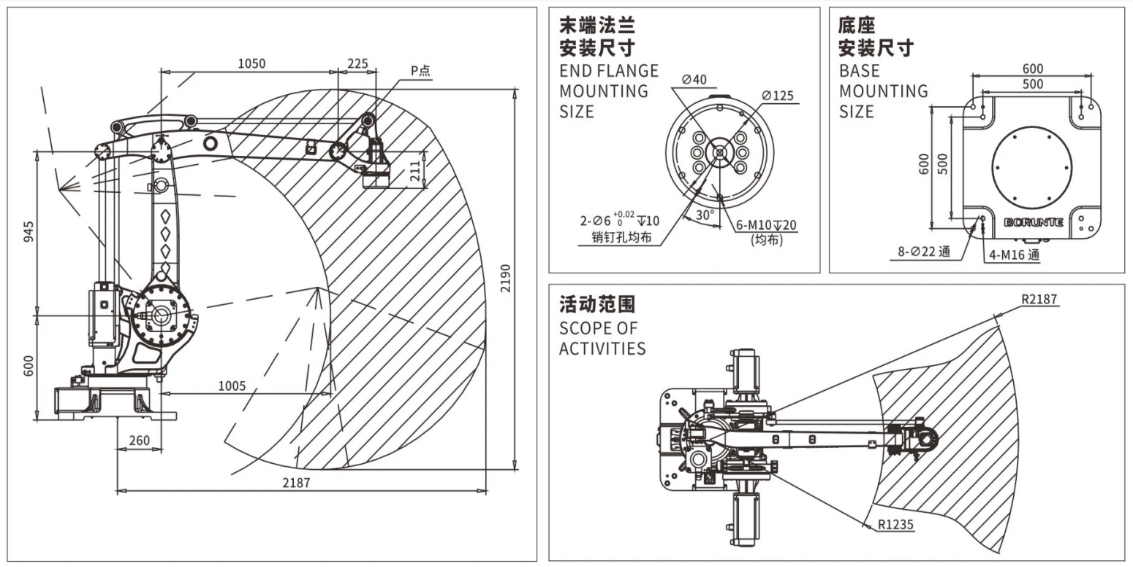

BRTIRPZ2480A Front View
BRTIRPZ2480A Side View
FOUR AXIS SYSTEM DESIGN

“Four axis Industrial Robot for Palletizing | 80kg Load 2400mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
80kg
Arm Length
2400mm
Repeated Positioning accuracy
±0.2mm
Weight
about 695kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Four-Axis Product Parameters

ModelBRTIRPZ2480A
Range(Arm)J1:±160° J2:-80°/+40° J3:-42°/+60°
Range(Wrist)J4:±360° R34:72°-195°
Max.speed(Arm)J1:148°/s J2:148°/s J3:148°/s
Max.speed(Wrist)J4:299°/s
Arm Length2400mm
Loading ability80kg
Repeated positioning accuracy±0.2mm
Power source5.53kVA
WeightAbout 695kg
Application scenariosHandling ，Stacking ，Stamping ，Injection molding ， Assembling，etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
