Products / Four Axis Series / BRTIRPZ3030B

BRTIRPZ3030B

Precision Engineered Robotic Systems
Payload Capacity
300kg
Working Reach
2950mm
Repeated Accuracy
±0.2mm

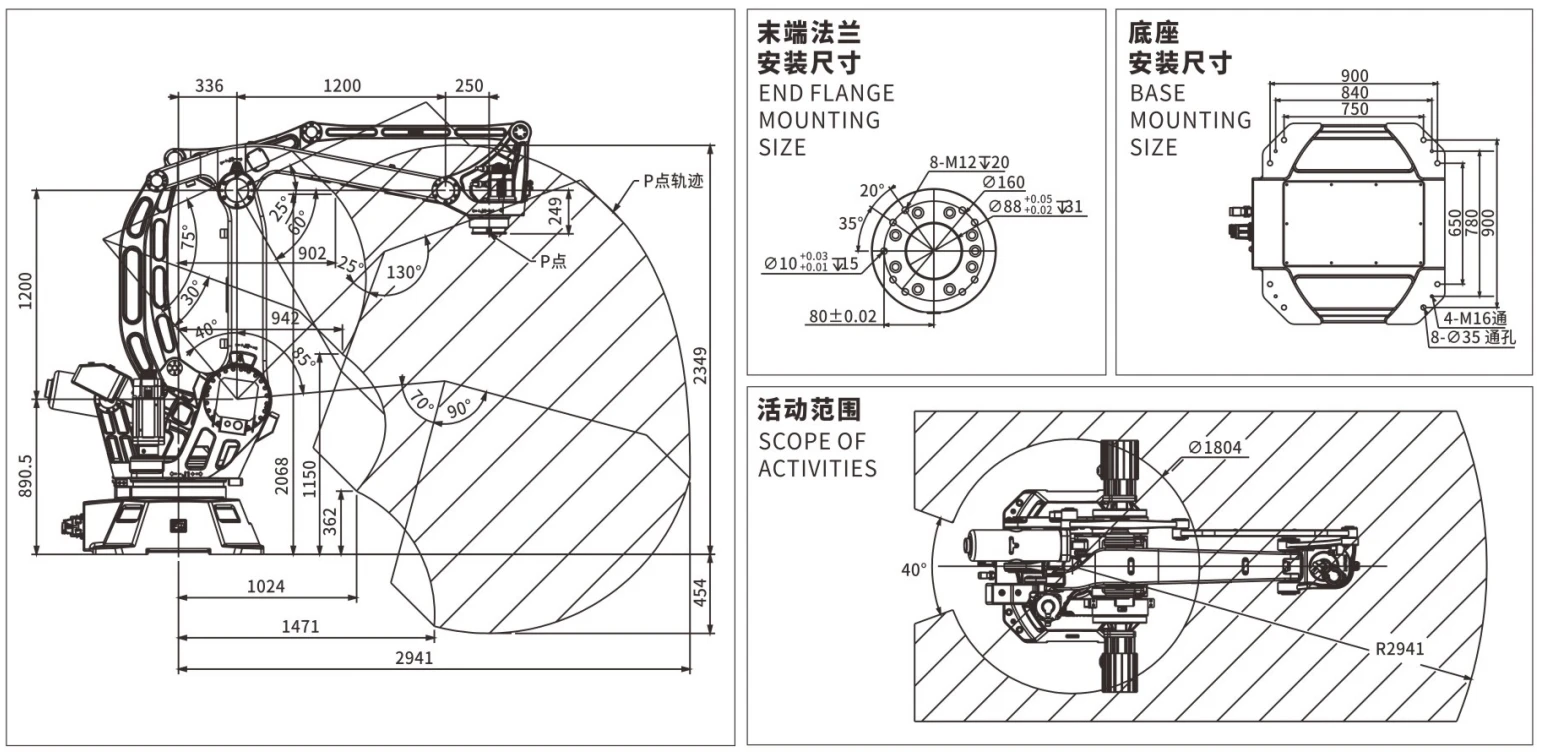

BRTIRPZ3030B Front View
BRTIRPZ3030B Side View
FOUR AXIS SYSTEM DESIGN

“Four axis Industrial Robot for Palletizing | 300kg Load 2950mm Arm Length”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
300kg
Arm Length
2950mm
Repeated Positioning accuracy
±0.2mm
Weight
about 2550kg
Protection grade
Ip40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Four-Axis Product Parameters

ModelBRTIRPZ3030B
Range(Arm)J1:±160° J2:-85°/+40° J3:-60°/+25°
Range(Wrist)J4:±360° R34:70°-160°
Max.speed(Arm)J1:53°/s J2:56°/s J3:56°/s
Max.speed(Wrist)J4:436°/s
Arm Length2950mm
Loading ability300kg
Repeated positioning accuracy±0.2mm
Power source24.49kVA
WeightAbout 2550kg
Application scenariosHandling ，Stacking ，Stamping ，Injection molding ， Assembling，etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
