BRTIRSE2013A
Precision Engineered Robotic Systems
SIX AXIS SYSTEM DESIGN
“Six axis Industrial Robot for Spraying | 13kg Load 2000mm Arm Length”
System Specifications
Control System
HC Control System
Color(General)
red
Loading Ability
13kg
Arm Length
2000mm
Repeated Positioning accuracy
±0.05mm
Weight
about 385kg
Protection grade
Ip65,Dust-proof and water-proof
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

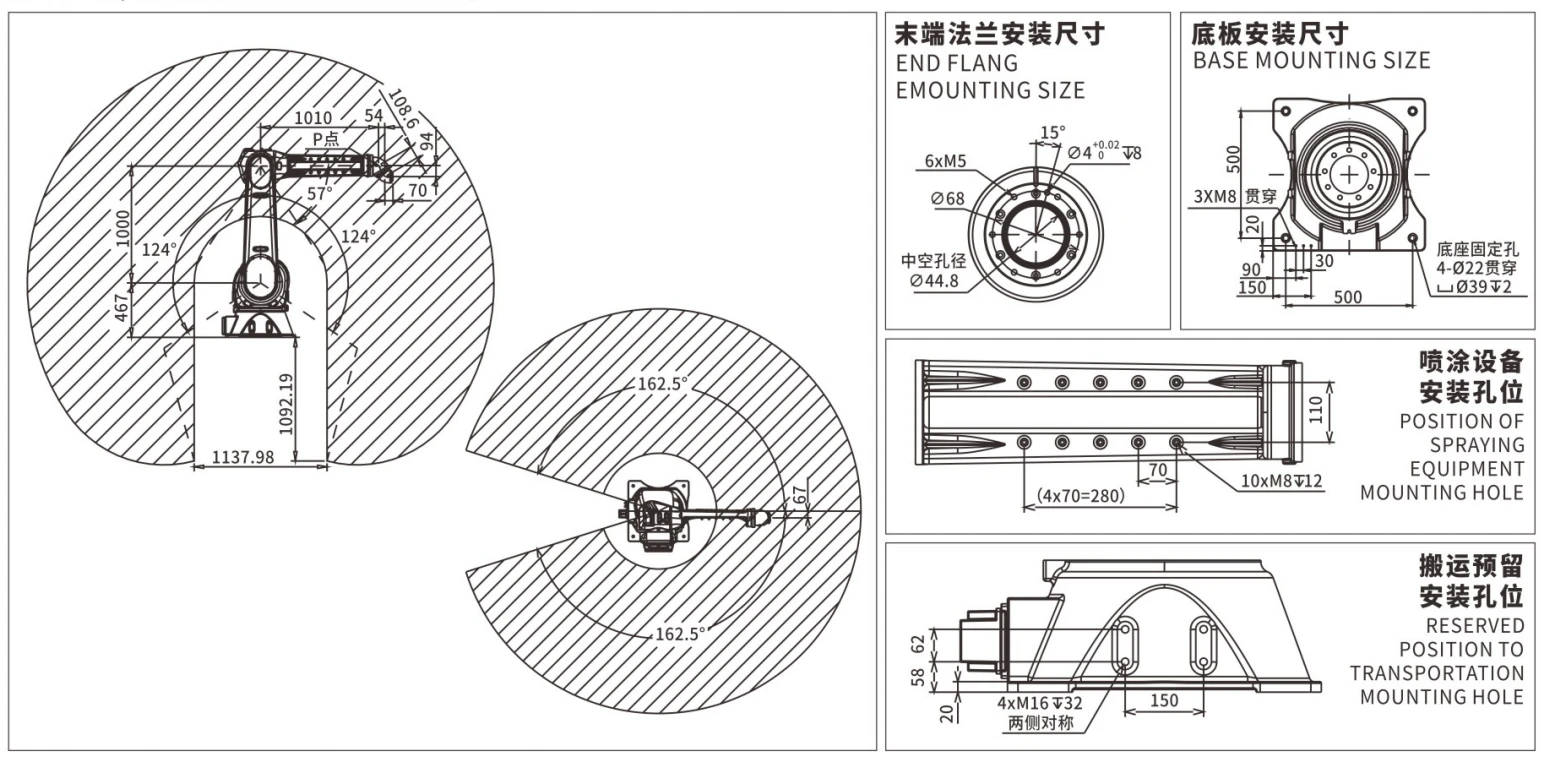

Six-Axis Product Parameters
ModelBRTIRSE2013A
Range(Arm)J1:±162.5° J2:±124° J3:-57°/+237°
Range(Wrist)J4:±180° J5:±180° J6:±360°
Max.speed(Arm)J1:101.4°/s J2:105.6°/s J3:130.49°/s
Max.speed(Wrist)J4:368.4°/s J5:415.38°/s J6:545.45°/s
Arm Length2000mm
Loading ability13kg
Repeated positioning accuracy±0.5mm
Power source6.38kVA
WeightAbout 385kg
Application scenariosHandling，Stamping，Injection molding，Grinding，Cutting，Deburring， Gluing，Stacking，Spraying, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
