BRTIRUS1510A

Precision Engineered Robotic Systems
Payload Capacity
10kg
Working Reach
1500mm
Repeated Accuracy
±0.05mm
BRTIRUS1510A Front View
BRTIRUS1510A Side View

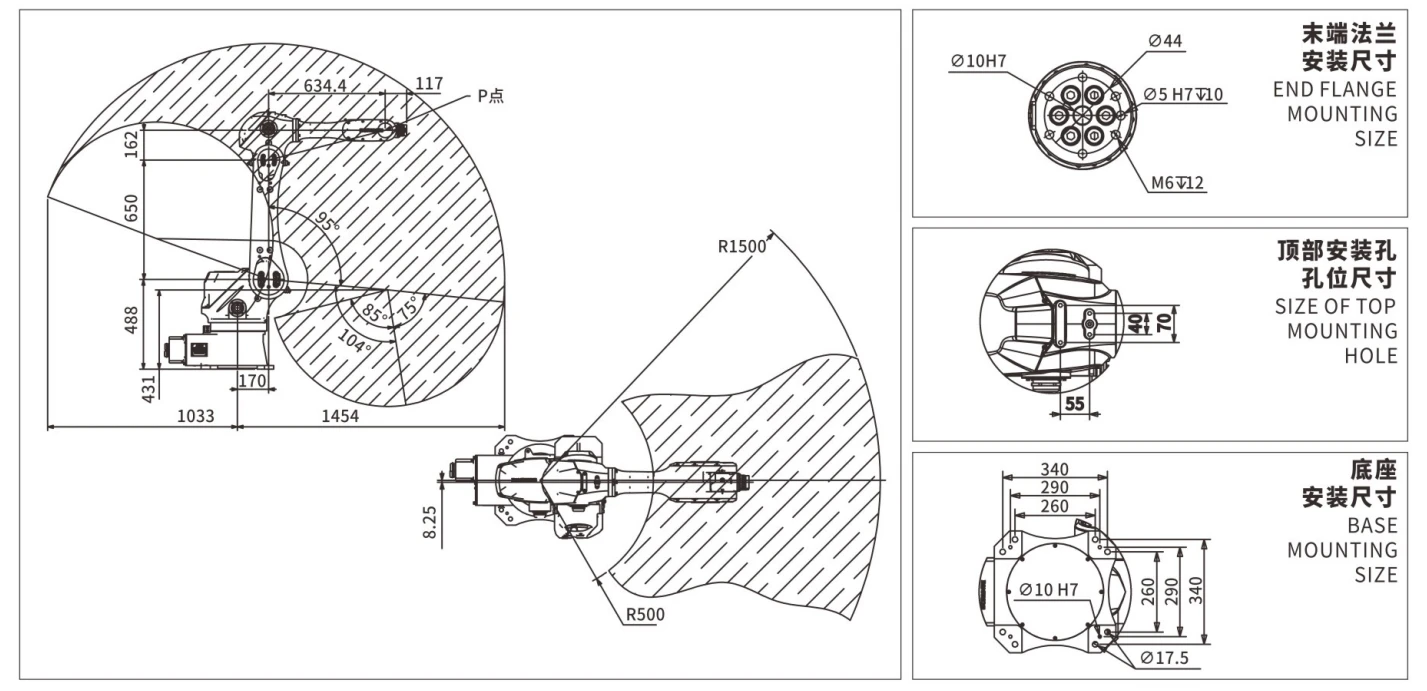

SIX AXIS SYSTEM DESIGN

“Six axis Industrial Robot for Flexible Production | 10kg Load 1500mm Arm Length Multi Scenario Versatility Welding Stamping Handling More”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
10kg
Arm Length
1500mm
Repeated Positioning accuracy
±0.05mm
Weight
about 150kg
Protection grade
Ip54,Dust-proof and water-proof
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Six-Axis Product Parameters

ModelBRTIRUS1510A
Range(Arm)J1:±165° J2:-95°/+70° J3:-85°/+75°
Range(Wrist)J4:±180° J5:±115° J6:±360°
Max.speed(Arm)J1:190°/s J2:173°/s J3:223°/s
Max.speed(Wrist)J4:250°/s J5:270°/s J6:336°/s
Arm Length1500mm
Loading ability10kg
Repeated positioning accuracy±0.05mm
Power source5.06kVA
WeightAbout 150kg
Application scenariosHandling，Stamping，Injection molding，Grinding，Cutting，Deburring， Gluing，Stacking，Spraying, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
