BRTIRUS2520B

Precision Engineered Robotic Systems
Payload Capacity
200kg
Working Reach
2570mm
Repeated Accuracy
±0.02mm

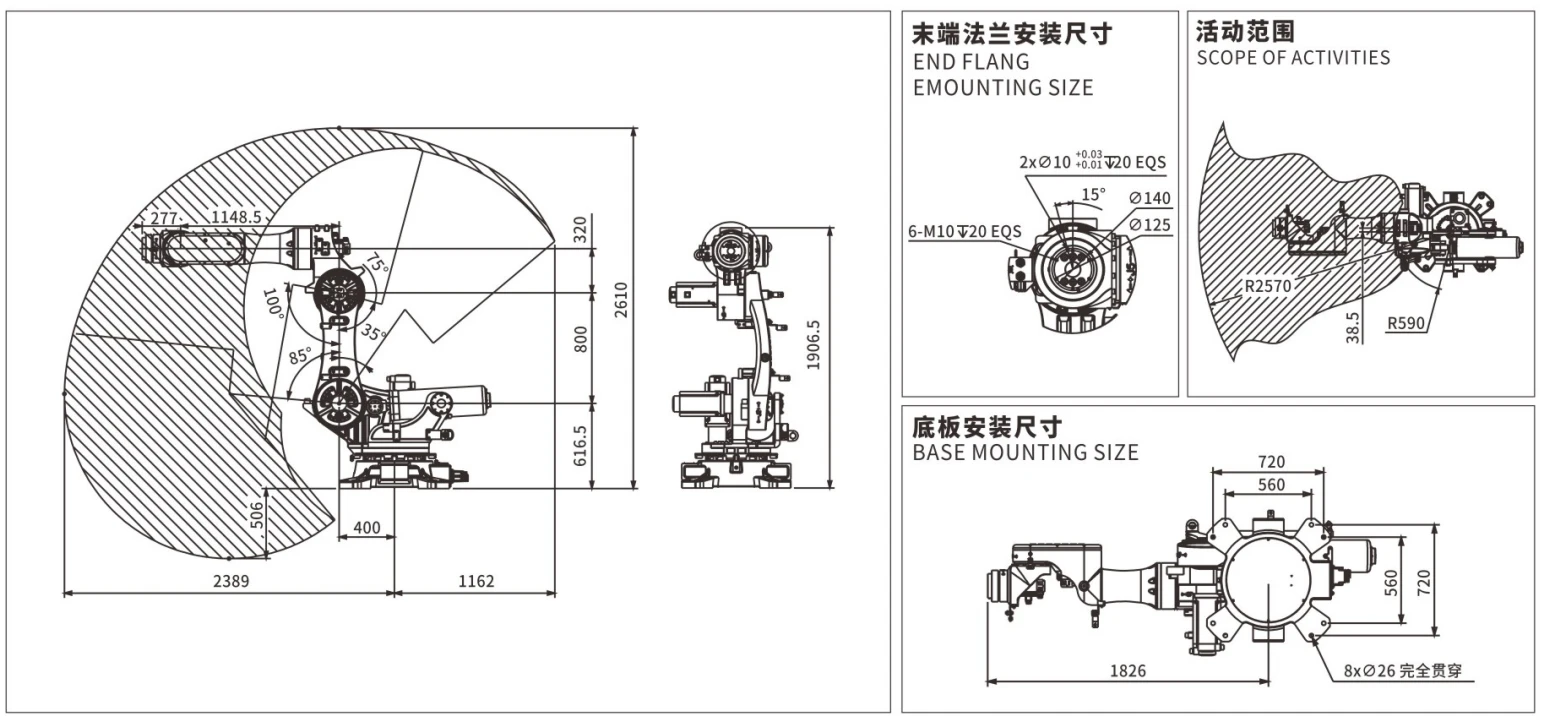

BRTIRUS2520B Front View
BRTIRUS2520B Side View
SIX AXIS SYSTEM DESIGN

“Six axis Industrial Robot for Flexible Production | 200kg Load 2570mm Arm Length Multi Scenario Versatility Welding Stacking Palletizing More”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
200kg
Arm Length
2570mm
Repeated Positioning accuracy
±0.02mm
Weight
about 1106kg
Protection grade
IP40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Six-Axis Product Parameters

ModelBRTIRUS2520B
Range(Arm)J1:±160° J2:-85°/+35° J3:-80°/+105°
Range(Wrist)J4:±180° J5:±95° J6:±360°
Max.speed(Arm)J1:63°/s J2:52°/s J3:52°/s
Max.speed(Wrist)J4:94°/s J5:101°/s J6:133°/s
Arm Length2570mm
Loading ability200kg
Repeated positioning accuracy±0.2mm
Power source9.58kVA
WeightAbout 1106kg
Application scenariosHandling，Stamping，Injection molding，Grinding，Cutting，Deburring， Gluing，Stacking，Spraying, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
