BRTIRUS3511A

Precision Engineered Robotic Systems
Payload Capacity
100kg
Working Reach
3500mm
Repeated Accuracy
±0.02mm

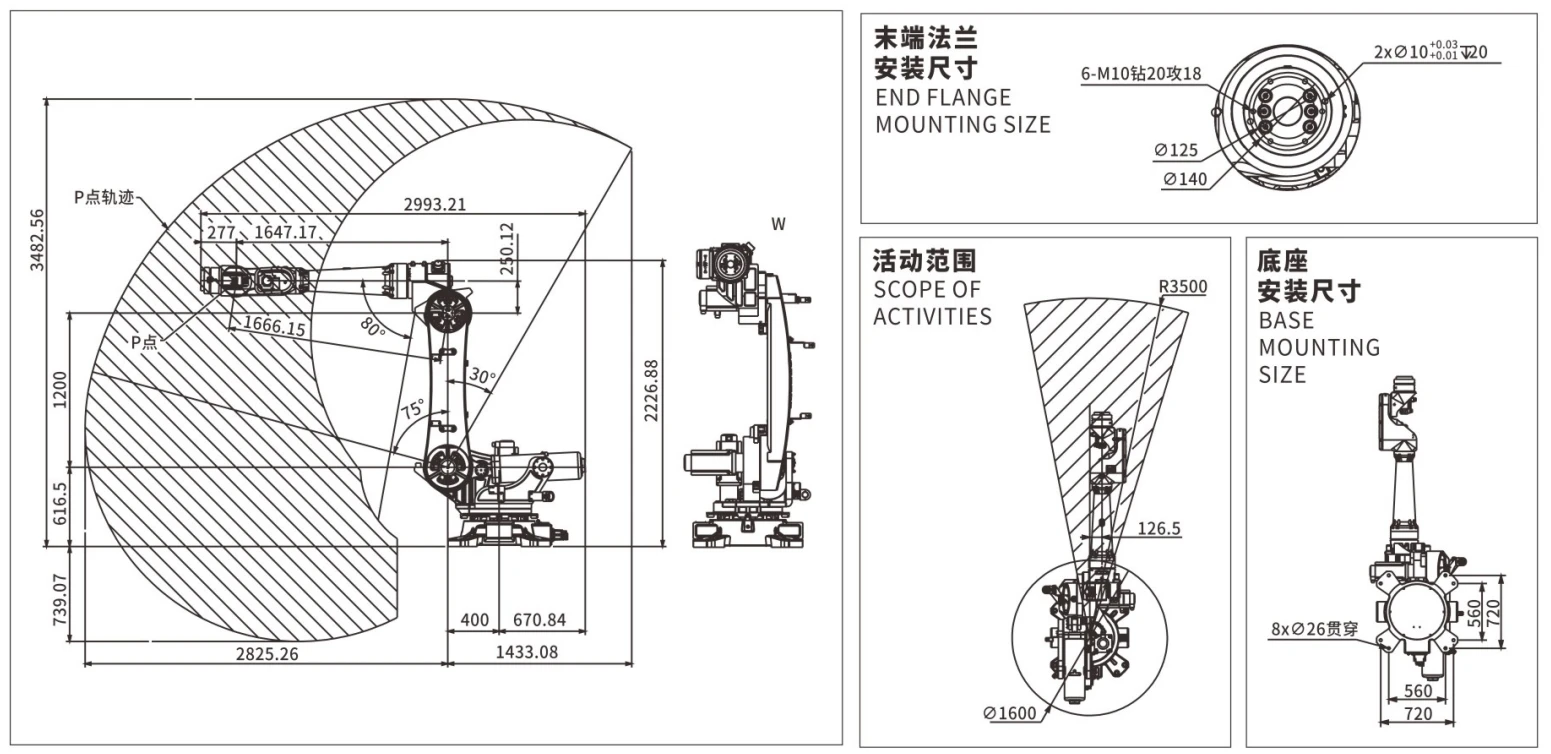

BRTIRUS3511A Front View
BRTIRUS3511A Side View
SIX AXIS SYSTEM DESIGN

“Six axis Industrial Robot for Flexible Production | 100kg Load 3500mm Arm Length Multi Scenario Versatility Welding Gluing Palletizing More”

System Specifications

Control System
HC Control System
Color(General)
red
Loading Ability
100kg
Arm Length
3500mm
Repeated Positioning accuracy
±0.02mm
Weight
about 1187.5kg
Protection grade
IP40
Accessories
teach pendant and electrical box
Power Supply
220V
Mpa
0.5~0.7MPa

Six-Axis Product Parameters

ModelBRTIRUS3511A
Range(Arm)J1:±160° J2:-75°/+30° J3:-80°/+85°
Range(Wrist)J4:±180° J5:±95° J6:±360°
Max.speed(Arm)J1:85°/s J2:70°/s J3:70°/s
Max.speed(Wrist)J4:82°/s J5:99°/s J6:124°/s
Arm Length3500mm
Loading ability100kg
Repeated positioning accuracy±0.2mm
Power source9.71kVA
WeightAbout 1187.5kg
Application scenariosHandling，Stamping，Injection molding，Grinding，Cutting，Deburring， Gluing，Stacking，Spraying, etc.
Operating temperature0℃~40℃
Best temperature15℃~25℃
Relative humidity20~80% RH（No condensation）
