BRTN17WSS5PC/FC
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 600T-1300T Injection Molding Machines | BRTN Series Five-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
20kg
Repeated Positioning accuracy
±0.1mm
Recommended I.M.M(Ton)
600T-1300T
Power Supply
220V
Arm Length
V:1700mm

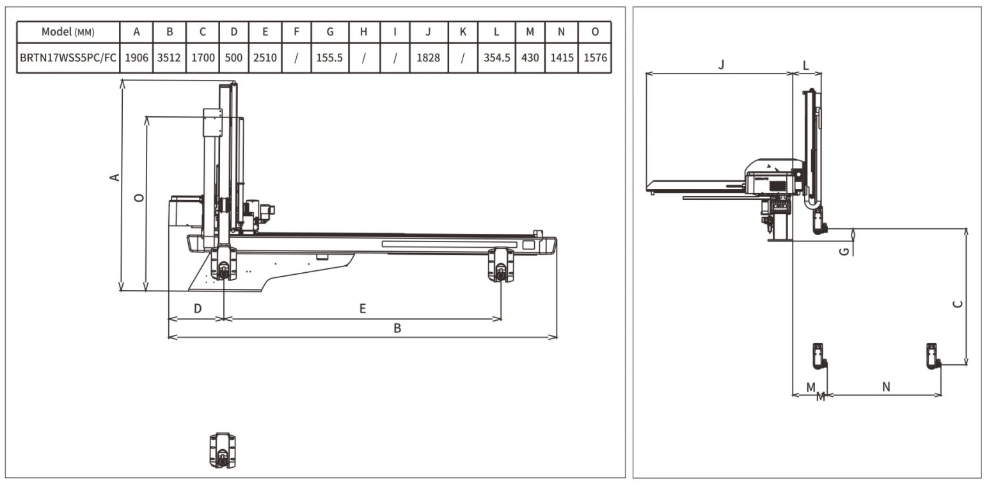

I.M.M. Robot Product Parameters
ModelBRTN17WSS5PC/FC
Recommended I.M.M600T-1300T
Traverser DrivenAC Servo motor
Model of EOATFour suctions
Two fixtures
Traverse Stroke2510mm
Crosswise Stroke1415mm
Vertical Stroke1700mm
Max.loading20kg
Dry Take Out Time4.45s
Dry Cycle Time13.32s
Air Consumption(NL/cycle)47
Repeatability±0.1mm
Power source4.23kVA
Weight585kg
Application scenariosInjection molding industry
