BRTN24WSS5PC/FC

Precision Engineered Robotic Systems
Payload Capacity
40kg
Working Reach
V:2400mm
Repeated Accuracy
±0.05mm

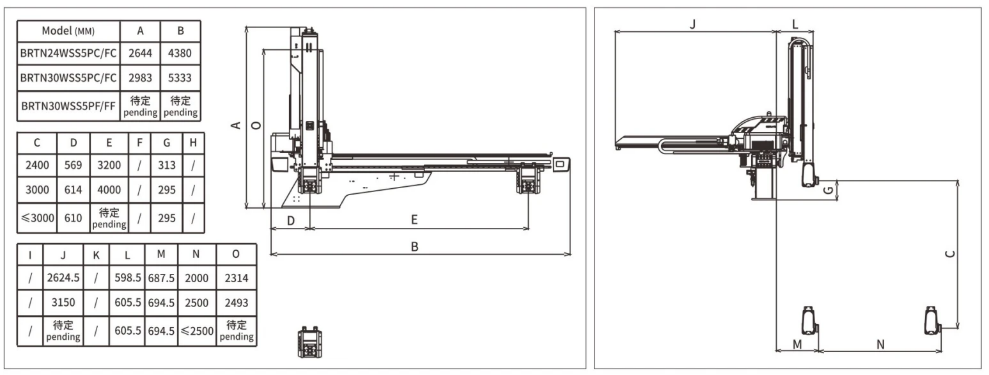

BRTN24WSS5PC/FC Front View
BRTN24WSS5PC/FC Side View
I.M.M. ROBOT SYSTEM DESIGN

“I.M.M Robot for 600T-1300T Injection Molding Machines | BRTN Series Five-Axis Servo Manipulator”

System Specifications

Control System
HC Control System
Color(General)
white
Loading Ability
40kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
1300T-2100T
Power Supply
220V
Arm Length
V:2400mm

I.M.M. Robot Product Parameters

ModelBRTN24WSS5PC/FC
Recommended I.M.M1300T-2100T
Traverser DrivenAC Servo motor
Model of EOATFour suctions Two fixtures
Traverse Stroke3200mm
Crosswise Stroke2000mm
Vertical Stroke2400mm
Max.loading40kg
Dry Take Out Time6.69s
Dry Cycle Time21.4s
Air Consumption(NL/cycle)15
Repeatability±0.05mm
Power source5.87kVA
Weight1550kg
Application scenariosInjection molding industry
