BRTN30WSS5PC/FC
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 2200T-4000T Injection Molding Machines | BRTN Series Five-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
60kg
Repeated Positioning accuracy
±0.1mm
Recommended I.M.M(Ton)
2200T-4000T
Power Supply
220V
Arm Length
V:3000mm

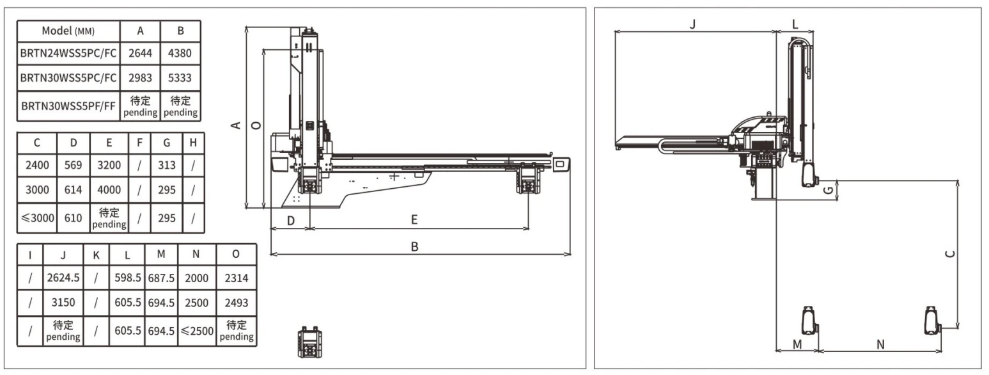

I.M.M. Robot Product Parameters
ModelBRTN30WSS5PC/FC
Recommended I.M.M2200T-4000T
Traverser DrivenAC Servo motor
Model of EOATFour suctions
Two fixtures
Traverse Stroke4000mm
Crosswise Stroke2500mm
Vertical Stroke3000mm
Max.loading60kg
Dry Take Out Time9.05s
Dry Cycle Time36.5s
Air Consumption(NL/cycle)47
Repeatability±0.1mm
Power source6.11kVA
Weight2020kg
Application scenariosInjection molding industry
