BRTNN11WSS3P/F
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 250T-480T Injection Molding Machines | BRTNN Series Three-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
10kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
250T-480T
Power Supply
220V
Arm Length
V:1100mm

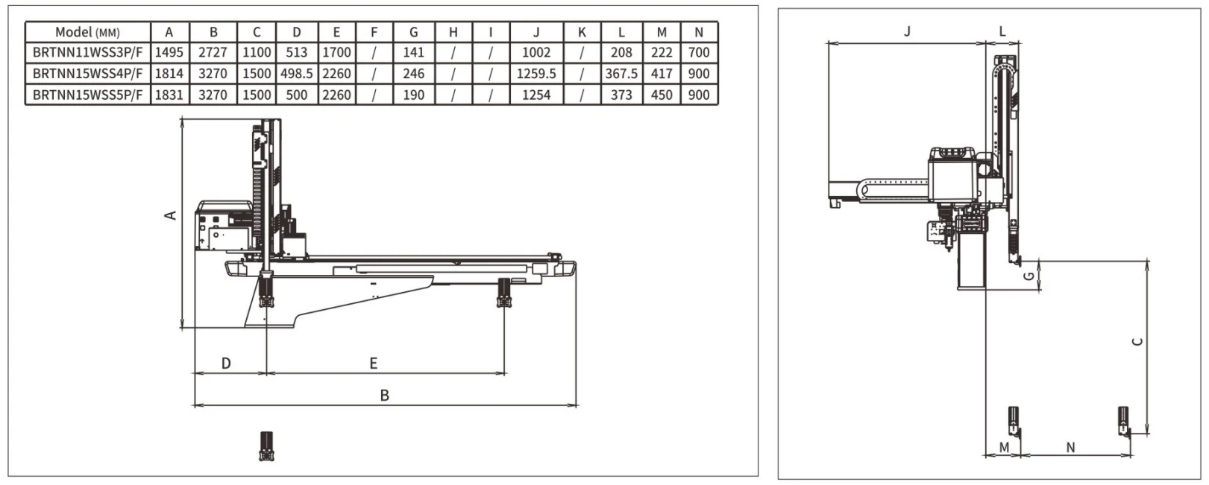

I.M.M. Robot Product Parameters
ModelBRTNN11WSS3P/F
Recommended I.M.M250T-480T
Traverser DrivenAC Servo motor
Model of EOATTwo suctions
Two fixtures
Traverse Stroke1700mm
Crosswise Stroke700mm
Vertical Stroke1100mm
Max.loading10kg
Dry Take Out Time1.6s
Dry Cycle Time6.15s
Air Consumption(NL/cycle)3.2
Repeatability±0.05mm
Power source2.59kVA
Weight261kg
Application scenariosInjection molding industry
