BRTNN15WSS4P/F
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 470T-800T Injection Molding Machines | BRTNN Series Four-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
15kg
Repeated Positioning accuracy
±0.1mm
Recommended I.M.M(Ton)
470T-800T
Power Supply
220V
Arm Length
V:1500mm

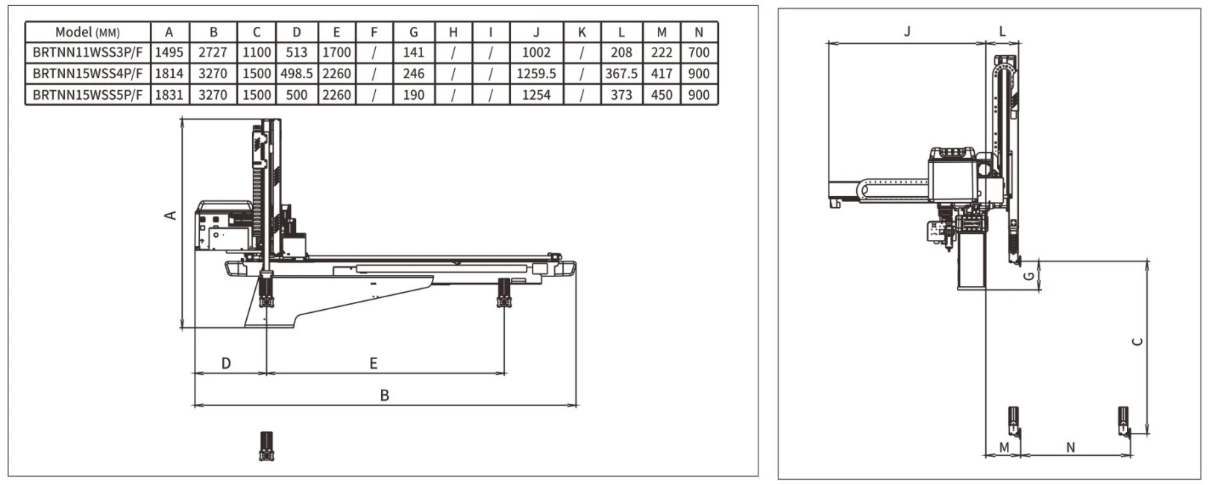

I.M.M. Robot Product Parameters
ModelBRTNN15WSS4P/F
Recommended I.M.M470T-800T
Traverser DrivenAC Servo motor
Model of EOATTwo suctions
Two fixtures
Traverse Stroke2260mm
Crosswise Stroke900mm
Vertical Stroke1500mm
Max.loading15kg
Dry Take Out Time2.74s
Dry Cycle Time9.03s
Air Consumption(NL/cycle)3.2
Repeatability±0.1mm
Power source3.18kVA
Weight500kg
Application scenariosInjection molding industry
