BRTR09WDS5P0/F0
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 160T-320T Injection Molding Machines | BRTR Series Five-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
8kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
160T-320T
Power Supply
220V
Arm Length
V:950mm

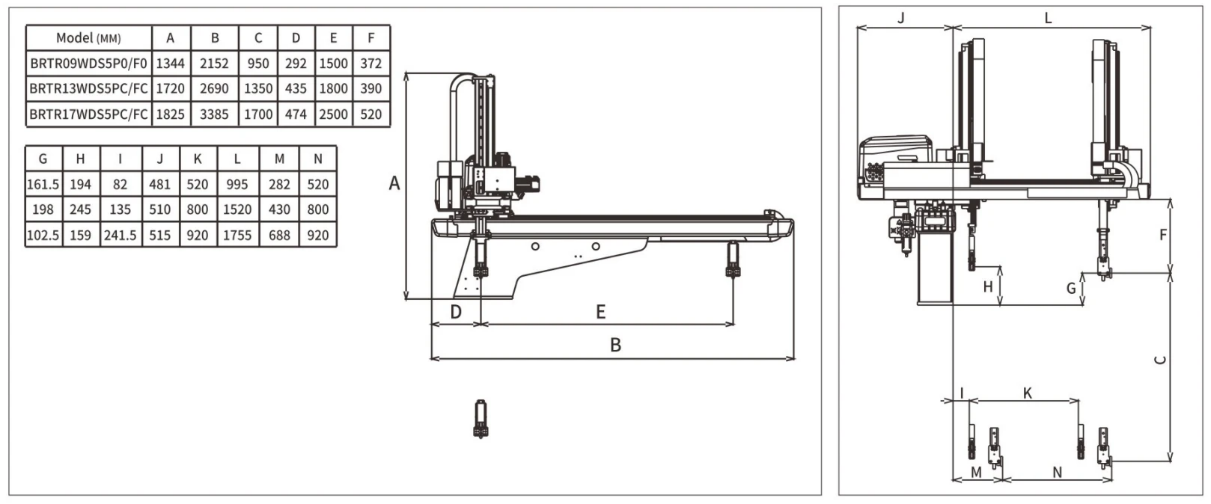

I.M.M. Robot Product Parameters
ModelBRTR09WDS5P0/F0
Recommended I.M.M160T-320T
Traverser DrivenAC Servo motor
Model of EOATFour suctions
Two fixtures
Traverse Stroke1500mm
Crosswise StrokeP:520mm R:520mm
Vertical Stroke950mm
Max.loading8kg
Dry Take Out Time1.5s
Dry Cycle Time5.61s
Air Consumption(NL/cycle)4
Repeatability±0.05mm
Power source2.91kVA
Weight246kg
Application scenariosInjection molding industry
