BRTR13WDS5PC/FC
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 360T-700T Injection Molding Machines | BRTR Series Five-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
10kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
360T-700T
Power Supply
220V
Arm Length
V:1350mm

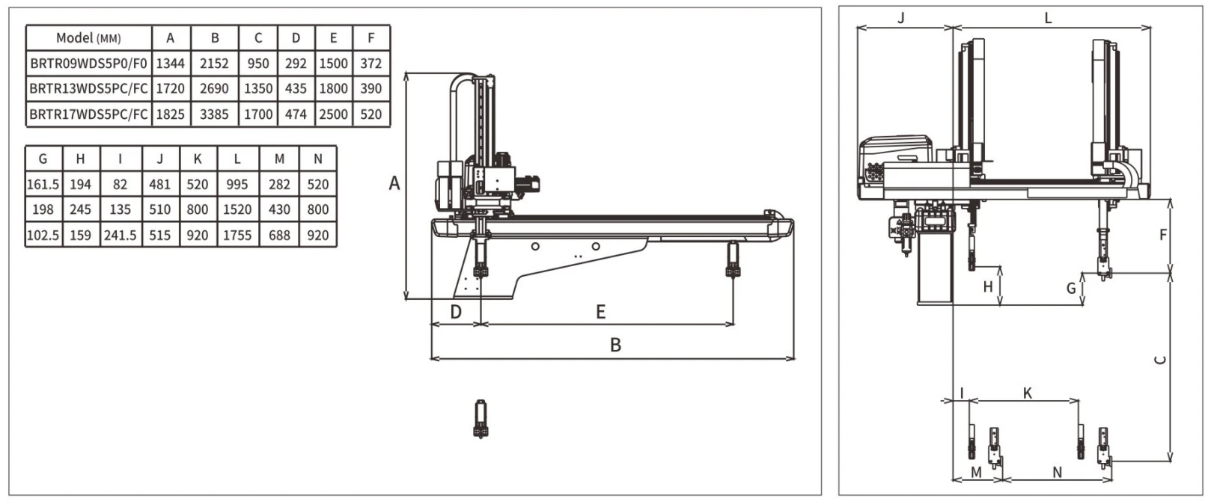

I.M.M. Robot Product Parameters
ModelBRTR13WDS5PC/FC
Recommended I.M.M360T-700T
Traverser DrivenAC Servo motor
Model of EOATFour suctions
Two fixtures
Traverse Stroke1800mm
Crosswise StrokeP:800mm R:800mm
Vertical Stroke1350mm
Max.loading10kg
Dry Take Out Time2.67s
Dry Cycle Time8.66s
Air Consumption(NL/cycle)6.8
Repeatability±0.05mm
Power source3.76kVA
Weight450kg
Application scenariosInjection molding industry
