BRTR17WDS5PC/FC
Precision Engineered Robotic Systems
I.M.M. ROBOT SYSTEM DESIGN
“I.M.M Robot for 750T-1200T Injection Molding Machines | BRTR Series Five-Axis Servo Manipulator”
System Specifications
Control System
HC Control System
Color(General)
white
Loading Ability
15kg
Repeated Positioning accuracy
±0.05mm
Recommended I.M.M(Ton)
750T-1200T
Power Supply
220V
Arm Length
V:1700mm

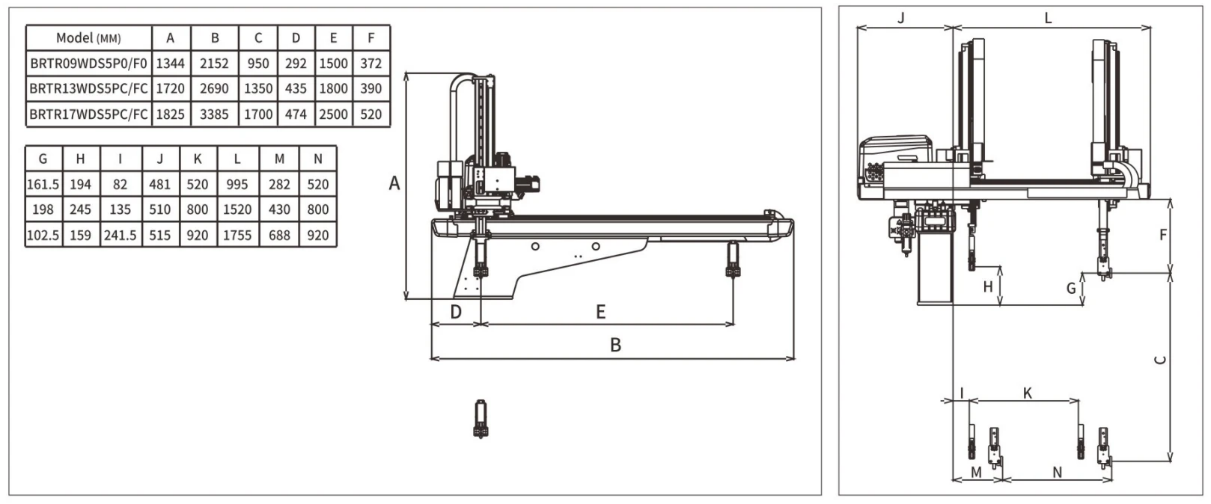

I.M.M. Robot Product Parameters
ModelBRTR17WDS5PC/FC
Recommended I.M.M750T-1200T
Traverser DrivenAC Servo motor
Model of EOATFour suctions
Two fixtures
Traverse Stroke2500mm
Crosswise StrokeP:920mm R:920mm
Vertical Stroke1700mm
Max.loading15kg
Dry Take Out Time3.72s
Dry Cycle Time12.72s
Air Consumption(NL/cycle)15
Repeatability±0.05mm
Power source3.67kVA
Weight800kg
Application scenariosInjection molding industry
